Subaru Forester Master Window Switch Wiring

If you ever owned or worked on a Subaru Forester, SF and SG in particular, you will know that the master window switch connector is prompt to being ripped off easily when you need to remove it. Yea, it sucks when it happened! And I believe if you are in Asia or the Pacific region, you won't be able to find a proper wiring diagram to repair the problem unless, may be, if you have direct connection with the dealers.

With the help of Mr Google, I have managed to find something from the US site (LHD). This is by far the closest wiring diagram that I can match with what im working on, but the result, well... is far from ideal. So lesson learnt, never ever tried to cross and match the diagram from different regions even though the vehicle make and model are the same. It will never worked!

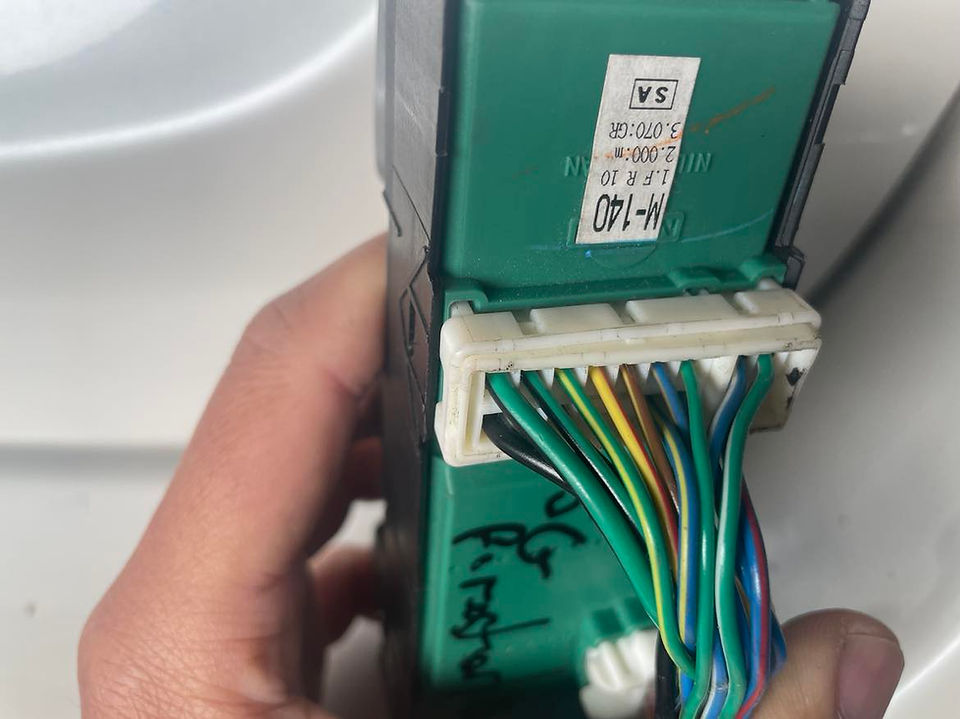

Frustrated enough, and where to from here? I have decided to scrap everything and restart from scratch. And fortunately after hours of trial and error, I have got all wiring back into their proper pin slots and completed the connection. So there you go people, if you have the similar wiring colour code as what i have in the picture below, you should have no problem with the repair now! May the world lives in peace and more car issues got fixed! ;)

Note: remember to check your window fuse as it might be blown when the connector got ripped!
